Cixi Wanrui Bearing Co., Ltd.
2 Years
| Ask Lasest Price | |
| Brand Name : | CIE |
| Model Number : | SER 208 |
| Supply Ability : | 10000 Piece/Pieces per Month |
| Price : | $2.50/pieces 200-999 pieces |
Long Life Customized Wanrui Bearing Spherical Bearing snap ring bearing SER 208
Insert ball bearings are outer diameter in spherical surface,internal construction is the same as deep groove ball bearings of 6200 6300 series.they both can sustain radial and axial loads.We can supply full series of UC200,UC300,SA200,SB200,UEL200,UK200,SER200,CS200,UC300 series bearings.Such bearings are often used in severe operating conditions where they are exposed to dirts,moisture and high temperature.thus,insert ball bearing are usually with grease groove and oil hole on outer ring,at suitable time,we need to replace fresh grease to secure full performance and longer service life of the bearing under operating condition.
1. Material: Chrome steel Gcr15 or stainless steel.
2. Quality grade: ABEC-1,ABEC-3 with noise level Z1,Z2
3. Type: UC,UK,HC,SA,SB,SER,CS series from inner bore diameter 12mm to 100mm.
4. Seal structure: plain type, four star type,F type,double seals,three lip seals etc.
5.Clearance: normally manufactured with C0,also C3 as per request.
6. Packing: single nylon bag + single color box +outer carton + pallets

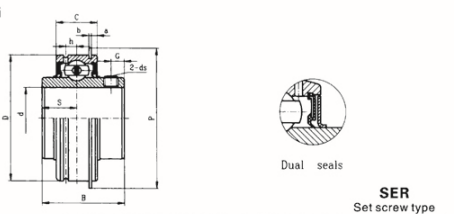

The following parameters are about snap ring bearing SER 208 dimension and structure related, I hope which can help you understand them better:
Item | Snap Ring Bearing SER 208 |
Brand: | CIE |
ID: | 40mm |
OD: | 80mm |
Width | 49.2mm |
Certification: | ISO9001:2015 ISO14001:2015 OHSAS 18001:2007 |
Packing | Industry & Single Packing |
Delivery | 15-35 Days |
Payment | L/C, T/T, D/P, Paypal |
MOQ | 20 Piece |
Advantage | Competitive Prices with Excellent Quality |
Quality is the basis of products. We already established
ISO9001:2015 quality management system,ISO14001:2015 environment management system and OHSAS 18001:2007 health and safety
management.We own the consummate equipments,the advanced craft and
high technology.Our testing center has hardness instruments,roundness machine,
roughness machine,noise and BVT testing machine,clearance
instrument,inner/outer/width diameter instrument.which can provide
scientific results of finished products in order to re-engineer
improvements in production process. We also conduct all raw
material chemical composition test to ensure product lifespan
expectation result.before sending each lot,we must test quality
from freedom products or 100% inspection as per customer’s request.
Insert ball bearings are widely used in mines,metallurgy,reaper and other agriculture machinery,textile machinery,printer machinery,conveying machinery, body building equipment,construction machinery,food machinery,packing machinery,medical apparatus and so on.
1.Reply within 24hours for your questions
2.Strictly quality control during production and inspect randomly before every delivery
3.Responsible dealing with each problem accured during our business
Q:Can I get your samples ? is it free or charged ?
A: Yes, we can offer some pieces of samples for free but the
express cost is charged.
Q: How long is your delivery time?
A: Generally it is 5-7 days if the goods are in stock. or it is
15-30 days if the goods are out of stock.
Q: What is your terms of payment ?
A: Amount lower than 5000USD, 100% in advance. Amount more than
5000USD, 30% T/T in advance ,balance before shipment.
Q: Will you check these products before shipment?
A: Yes, all the bearings will be strictly controlled before shipment.
Q: What will you do if we are not satisfied with the product?
A: If have any abnormal, Please contact us at first time, we will immediately processing.
Looking forward to your inquiry !
|
|
